Orbiter M system

For heavier loads

For those who need a stronger solution to move heavier loads, the Orbiter M system is ready to help.

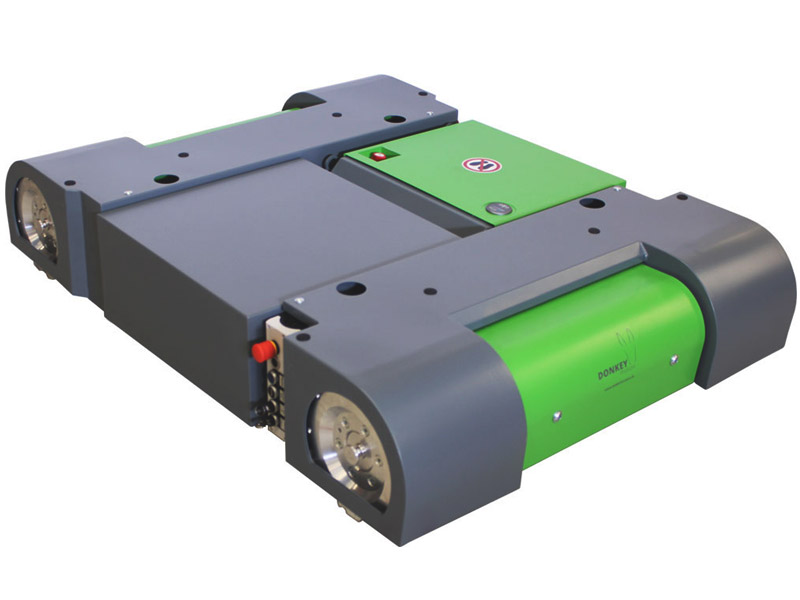

Double force M Orbiter

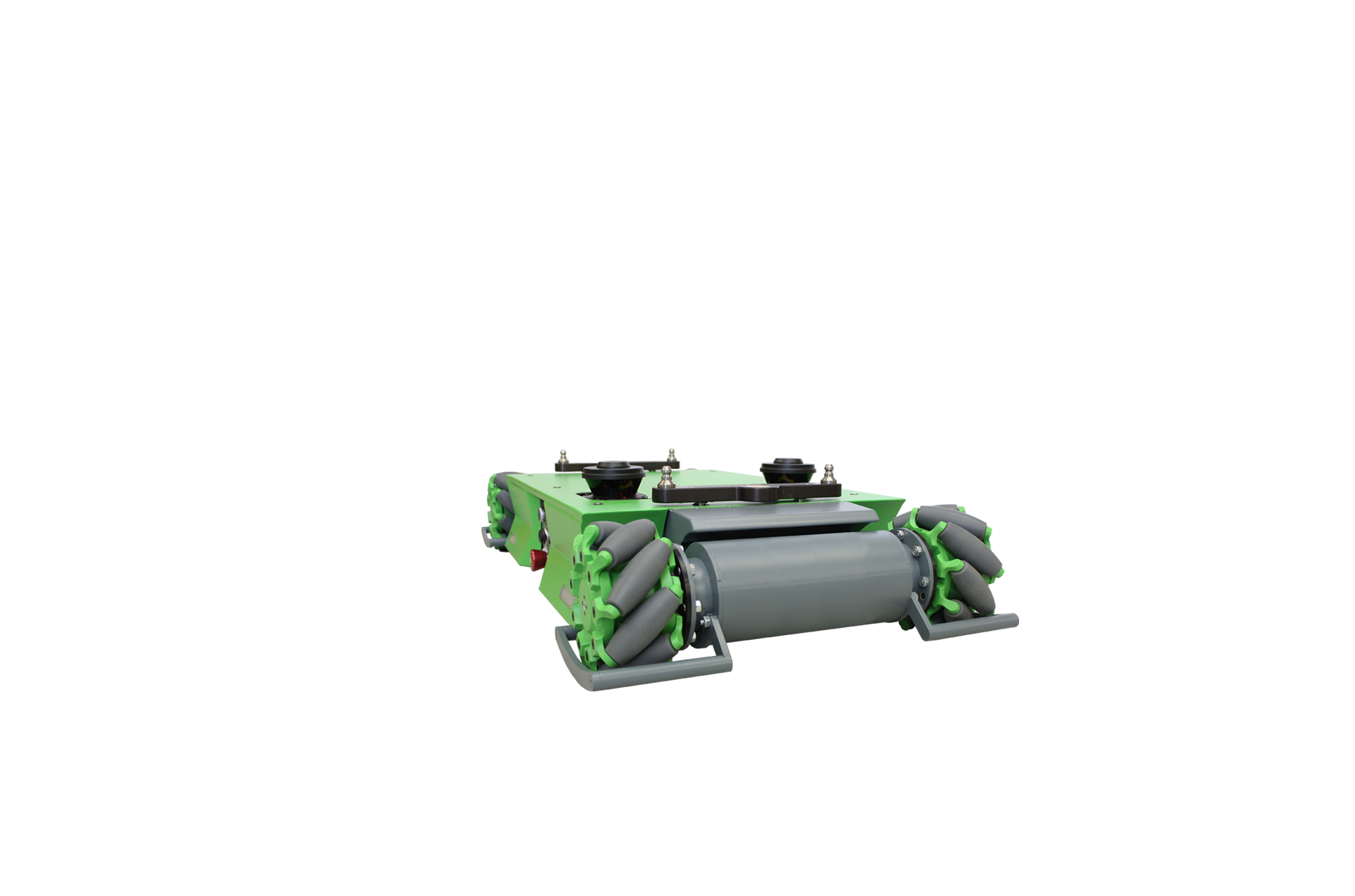

Mecanum Orbiter M

Technical data - M Double Force Orbiter

Footprint 1,6 x 1,2 m
Motor Power 4 x 528 W
Operating Voltage 48 V DC
Direct Payload 2650 kg
Drag Load 9000 kg, depends on floor quality
Installation height 350 mm
Net Weight 550 kg


Complete list of options for customization >>

You have the choice:

Whether two steps to enhance your creativity … or use the proven standard for large payloads, our double force M Orbiter!

kit for customized solutions

First step…
Use the plug-and-play powertrain kit for customized solution.

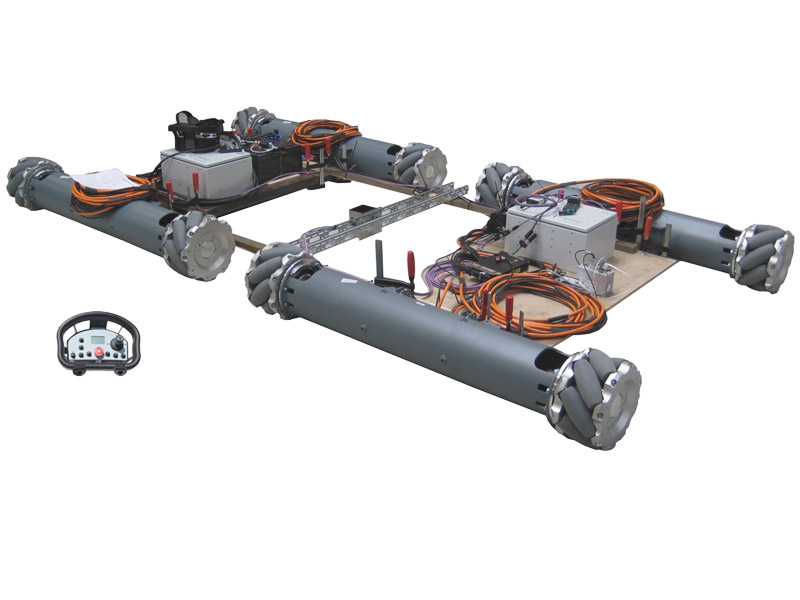

Base Mecanum Orbiter M

…second step:
Give free rein to your creativity: configure your own stage wagon and create your own stage trolley to suit your current and future needs.

>

Fulfill your dreams!

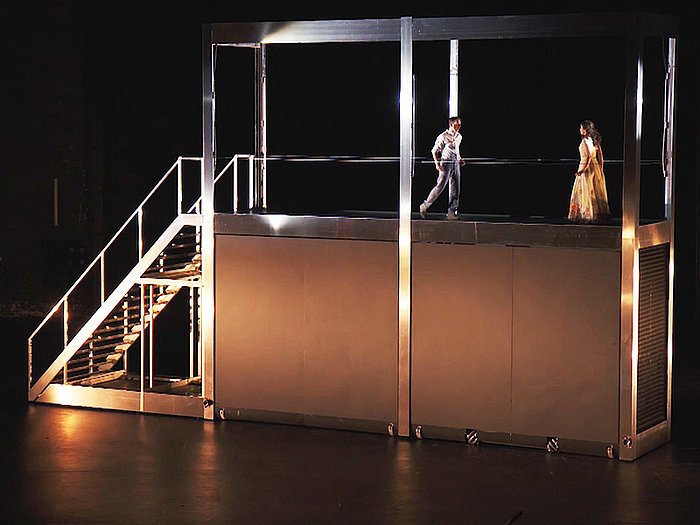

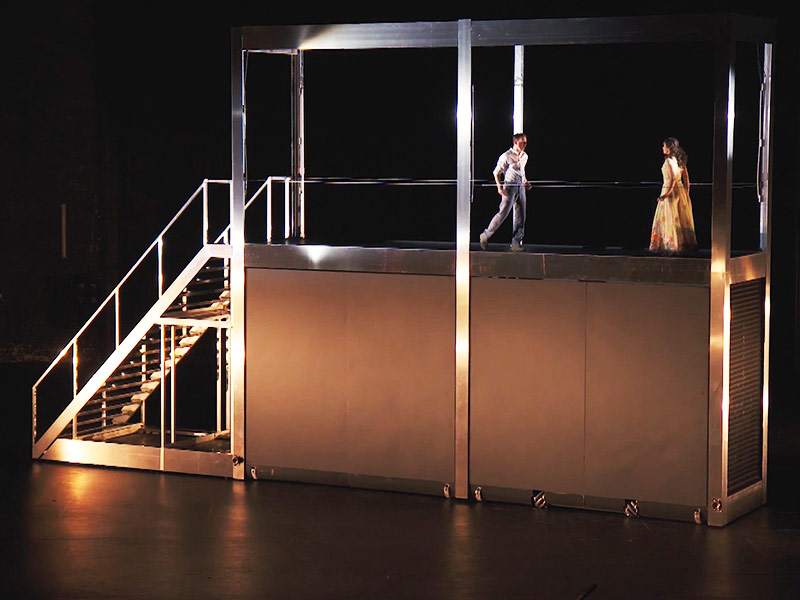

Bavarian Opera Munich

Brand new feature!

CAN or Profinet interface to/from your own control system

Logo CAN open
Logo Profi Net
